Shedlock is a very well documented library and has already integrated with SpringBoot and Micronaut way of setting a scheduled task. Usually, these kind of frameworks can schedule a task with just simply applying a decorator/annotation like so @Scheduled on top of your java method.

Deploying a SpringBoot application or a Micronaut (nowadays) into an orchestration platform like Kubernetes usually brings some issues; these scheduled tasks are bound to the container/vm they’re running into. Meaning that, if we have 3 replicas of that service that executes a @Scheduled task, we will experience that task executing 3 times – once per replica of a container.

On a recent task of mine to implement a scheduled task at my work which would call a third-party api to:

  • fetch some data
  • update some other
  • and report (after calling again and checking)

Obviously, we wouldn’t want our scheduled task to execute these routines as many times as the replica number of the container inside the Kubernetes cluster. Hence, a colleague of mine introduced me to Shedlock.

As mentioned above, Shedlock already has support on SpringBoot and Micronaut so to make it work was no pain at all. The only dependency required is a DataSource – a DB, cache, etc. The list of all the datastores that it supports is right here

Mongo
Redis
ElasticSearch
Cassandra
...
and many more!

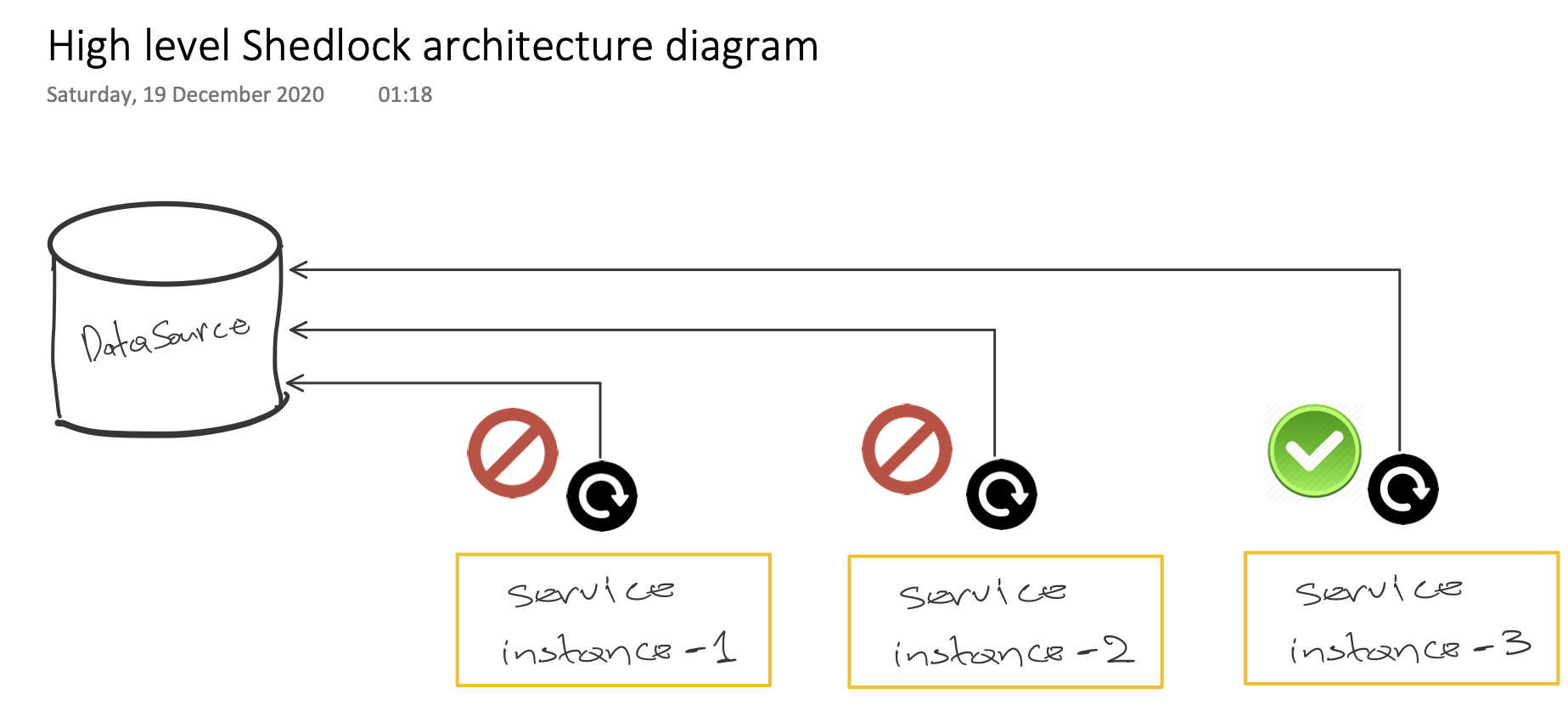

On a high level, Shedlock creates an index/table where the id of the scheduled task is locked, and it will make sure that only one of the instances will execute the scheduled task. Of course, if one of the instances will fail for any reason, the lock will be released for the next available!

high_level_architecture_diagram

Shedlock needs just another annotation on top of your scheduled task as follows in my example:

@Scheduled(fixedDelay = "5s")
@SchedulerLock(name = "say-hello-scheduler")
void schedule() {
    assertLocked();
    log.info("Hello from {}", App.class.getName());
}

along with some extra configuration in application.yml

shedlock:
  defaults:
    lock-at-most-for: 8s
    lock-at-least-for: 5s

Now the @Scheduled expects a LockProvider to be declared somewhere. Thus, in my example where I used Elasticsearch as my datastore, we would have factory bean method like so:

@Factory
public class SchedulingLockConfiguration {

    @Singleton
    LockProvider lockProvider(RestHighLevelClient client) {
        return new ElasticsearchLockProvider(client);
    }
}

In the docs of the library you can find factory bean methods for all the datastores that currently the library is integrated and supports to build the lock.

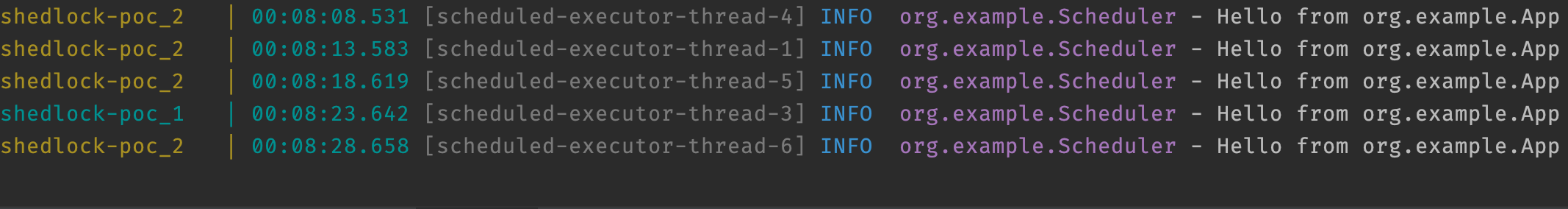

Here’s the output logs of a demo PoC I did

proof

That’s it! I hope this blog helped…

The repo can be found right here

https://github.com/pagidas/shedlock-poc
